For Absolute rotary encoder: Remote interface box CIB2X

Standard encoders usually require up to four interface cables directly at the device.
Tight installation spaces make handling and fastening M12 connectors difficult.
Axial and radial connection fields provide some flexibility but do not solve all space issues.

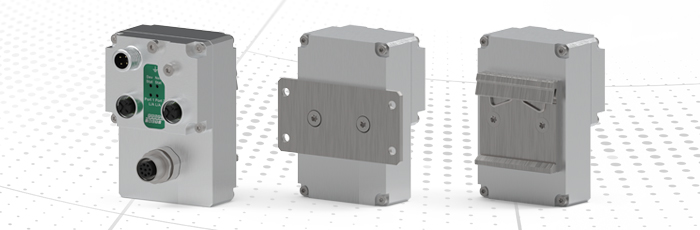

The Compact Interface Box (CIB2X) spatially separates encoder and interface box.
Connection is made via only one cable between encoder and box.
The interface box can be freely mounted where there is sufficient space for cabling.
Advantage: The encoder requires only one cable, making the installation footprint more compact.
Space limitation scenario: Series 582, 802, 1102 can be flexibly connected with up to 15 m link cables.
ATEX scenario: In explosive zones the box is installed in a safe area, standard connectors remain usable.
Harsh environments: Only the encoder and link cable are exposed, while the interface box stays protected.
Even ultra-compact C_362 encoders benefit from the interface variety of the larger series.
Result: A space-saving, flexible, and safe solution for diverse application conditions.
