Standard/compact rotary encoders

Optically or magnetically scanning rotary encoders from TR-Electronic precisely detect positions in steel production, wind turbines, cranes and ships etc. and, when explosion protected, in painting plants. Miniature versions ensure the correct position in medical engineering and SIL3 approved absolute encoders provide for the necessary safety.

In addition to high-quality encoders for almost any application, we offer extensive accessories such as programming tools, displays and assembly components for quick and easy commissioning and seamless process integration.


Model ranges

22 mm

Genuine multi-turn rotary encoder in 22 mm miniature format.
SSI, analogue

All products

36 mm

Compact design 36 mm
All-magnetic scanning
Also highly impermeable and washdown safe (IP69k)

Learn more
All products

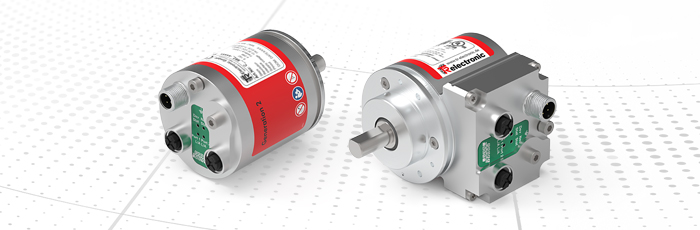

The industry standard

582

Industrial Ethernet with the “extra” functionality
Profinet, EtherCAT, Ethernet/IP
Resolution classes 12 bit, 15 bit, 18 bit
Solid shaft, blind-hole shaft, hollow shaft

Learn more
All products

58

Field buses, Industrial Ethernet
Profibus, CANopen, DeviceNet Powerlink
Resolution classes 13 bit, 15 bit, 18 bit
Solid shaft, blind-hole shaft, hollow shaft
Also as ATEX device for Zone 2/22

All products

CDV58

Compact double shaft encoder, fits into the standard installation space of a single shaft encoder.
Two independent magnetic multi-turn scans.
Synchronous serial interface

Learn more
All products


Large hollow shafts

C_H 80

For continuous shafts up to 25 mm (without groove 27 mm) Direct interfaces, field buses, Industrial Ethernet

All products

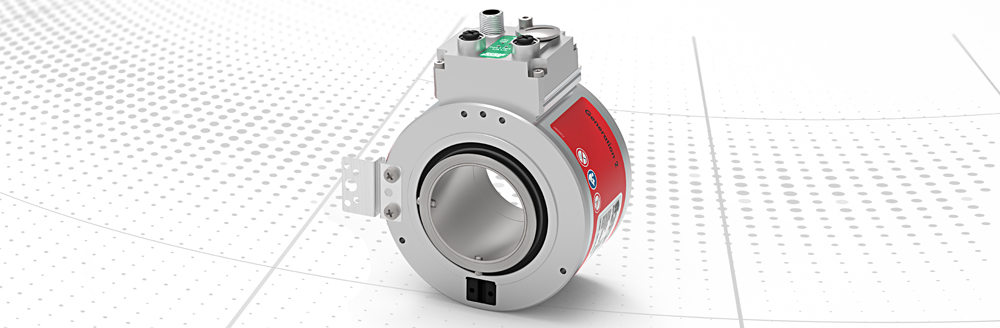

C_H110

For continuous shafts up to 50 mm
Direct interfaces, field buses, Industrial Ethernet

All products

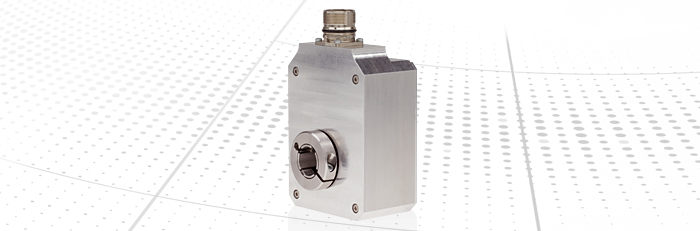

Q_H80

The hollow shaft encoder with double interface. Optionally with a second single-turn scan.

All products


Special ambient conditions

AEV70

The ATEX shaft encoder for Zones 1/21.

Learn more
All products

CEV84

Stainless steel encoder for aggressive environmental conditions: direct interfaces, field bus, Industrial Ethernet

All products

C_V115

Robust housing solution for protection against mechanical influences. Also with heating for cryogenic applications.

Learn more
All products


Functional safety

Functional safety, smaller in size than ever

Currently smallest absolute multiturn encoder for applications according SIL3!

learn more

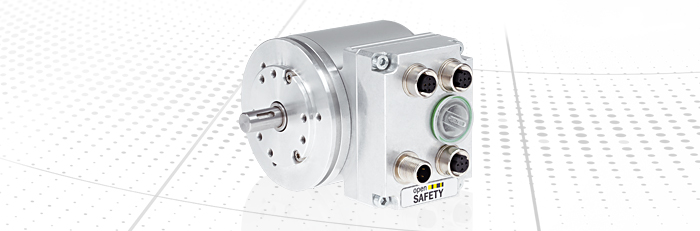

CD_75

The integrated SIL3/PLe solution for solid position and speed measurements. Absolute multi-turn measurements. Directly in error-protected bus systems
PROFISAFE (Profibus, Profinet)
Open Safety (Powerlink)
Functional Safety over EtherCAT
Also as ATEX version for Zone 2/22

Learn more
All products

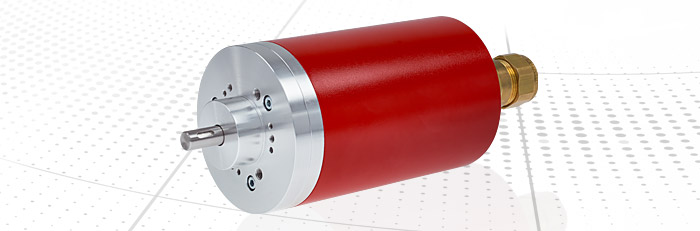

AD_88

The SIL3 solution for explosion-risk Zones 1/21.

Learn more
All products

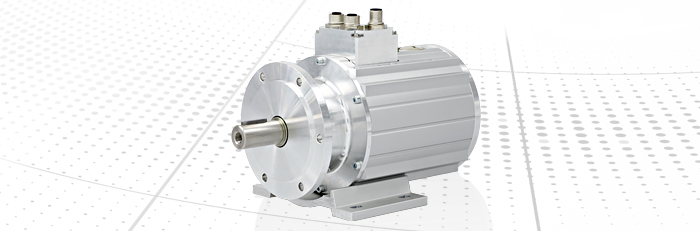

CDV115

Safe inside, heavy duty outside.
Reinforced bearings
Resistant housing
Stable mounting flange
SIL3, PLe
Safe bus technology

All products

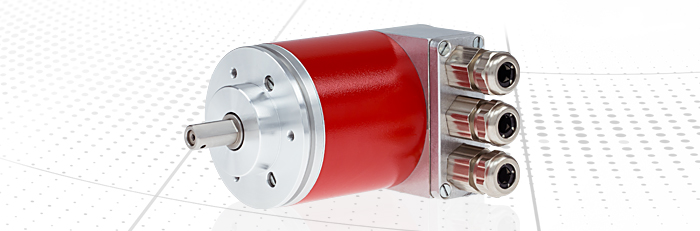

The cable connection specialist

65

For more fieldbus device connection space
PROFIBUS, DeviceNET, CANopen
Fieldbus cover for direct cabling on a construction site

All products
