Series IEx582 / IOx582

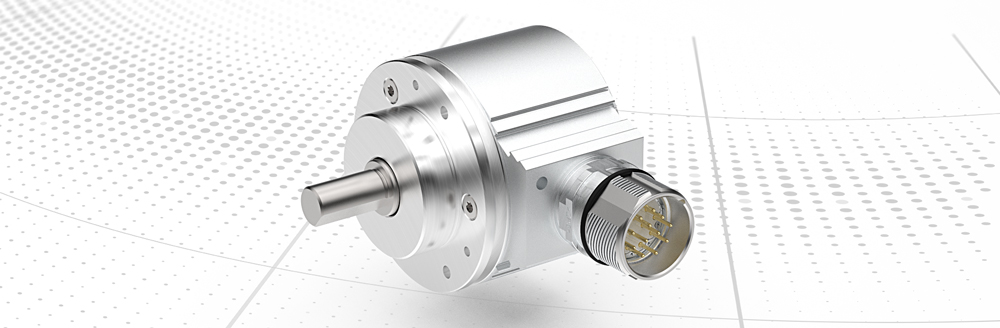

Programmable encoders - Series IE_582 / IO_582
  • IEV: freely programmable up to 10 000 pulses
  • IOV: freely programmable up to 65 536 pulses
  • Up to 15mm or ½“ hollow shaft or blind shaft
  • Wide range input 4.5 - 32 V DC
  • Electronic zero pulse adjustment

Software programmed incremental encoders by TR are the consequent use of „one for all“- technology of programmable encoders for incremental encoders.

The number of lines per revolution can be freely adjusted throughout the entire range up to 65 536. The width of the zero pulse and the position in relation to the encoder tracks can also be adapted to your controller's requirements. Particularly useful for commissioning: The zero pulse can be electronically adjusted - mount, set electronically, ready.

The supply voltage can vary between 4.5 and 32 V DC. The output levels are either identical to the supply voltage or set to TTL. Parameterization is easy using PC software and a USB adapter. Adjustable incremental rotary encoders are a real problem solver for new systems in warehousing and logistics. But a "one for all" rotary encoder is even more useful when it comes to the maintenance and repair of existing systems: One spare part can be used for all resolutions.

With different shaft-flange combinations, such as solid shaft, slip-on or through hollow shaft for shafts with a diameter up to 15mm or ½", the I__58:2 parameterizable incremental encoders can be used in almost any installation situation.


All IE_582/IO_582 encoders at a glance:

Useful Information

_Functional Description
_Mechanical Connections
_Connectivity
_Ways of Mounting
