Incremental encoder with fixed resolution

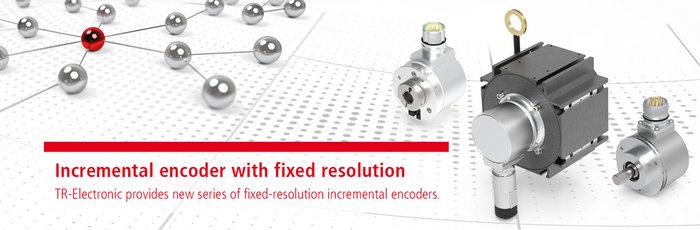

TR-Electronic provides new series of fixed-resolution incremental encoders.

Resolution of new series incremental encdoders is set in factory. Family IE_58 supports resolutions 2 up to 10.000 pulses per turn; family IO_58 is capable of resolutions up to 65.536 pulses. Incremental rotary encoders series I__58 can be obtained with solid shaft, blind and hollow-through shaft for shaft diameters up to 15 mm. For linear measurements, IE_ and IO_ can be equipped with a suitable wire length encoders. As connection options, M23 and M12 connectors are available, cable is possible as well. Incremental encoders work with supply voltages from 4,75 up to 30 V dc. Output signal is factory set TTL (5 V) or HTL (= VCC).

Technical Data

• IEx max 10.000 Increments
• IOx max 65.536 Increments
• Solid shaft, blind- and hollow shaft, wire lenght encoder
• M23 / M12 connector or cable gland
• Wide range power supply 4,75 … 30 VDC
• TTL- or HTL-output
