SPS IPC Drives 2017 - Highlights


Brochures for downloading:





Sensors Highlights 2017
(68-105-126)

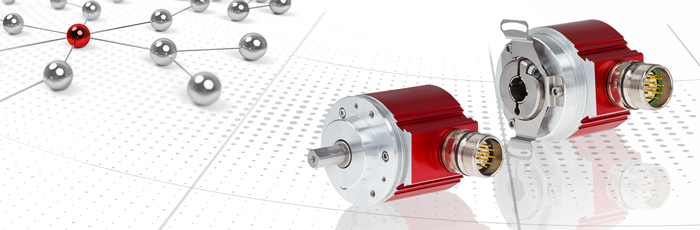

New detection technology “P“ for absolute and incremental rotary encoders.

Get two important properties in one detection solution: New detection technology “P” for absolute and incremental rotary encoders is robust and dewfall proof and provides high resolution output with up to 16 bits per turn.

This is a new option that makes incremental and absolute rotary encoders fit perfectly into given application constraints. Absolute and incremental rotary encoders made by TR are available with solid shaft, blind shaft and hollow through shaft. When application space is limited, it becomes important to choose between axial or radial connector orientation for solid and blind shaft encoders.

Of course: TR-Electronic provides a wide variety of available interfacings for absolute rotary encoders to fit your needs.

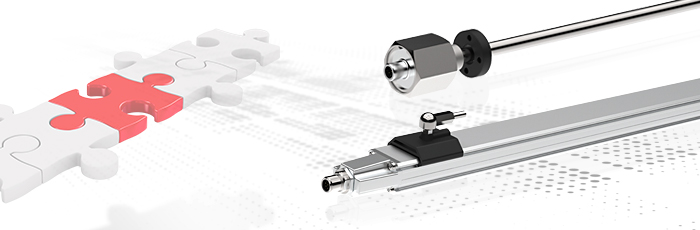

LM_S34 Linear encoders for industrial standard applications

The TR-Electronic Linear measurement systems family has grown. We’ve added the LM_S34! It closes the gap between high-resolution and cost optimization.

The LMRS34 flange thread and protective rod geometry fits perfectly into hydraulic cylinders available on the market. The LMPS34 in profile housing can be attached to machine geometry. The reduced profile height fits into most applications that use similar current systems.. Where there is more room, TR-Electronic provides spacers that lift the measurement system to convenient position. The profile geometry is suitable for magnet sliders as well as position magnets that are guided by application mechanics.

Currently, industrial standard interfaces are available as Analog (current, voltage) but SSI, CAN. IO-Link will be available soon.


You feel like carefree positioning?

Good news for all of you that are interested in our decentralized, integrated positioning drives “encoTRrive”. Meet our drive specialists in hall 4, booth 547. Let them show you how they can free you from concerns of your daily work in choosing and installation of positioning drives. Reduce your space concerns in the switch cabinet: Closed loop controller, power amplifier, absolute rotary encoder and bus interface are all integrated into the drive mounted directly to the machine. You need to migrate applications to PROFINET and want to use as well PROFIBUS in some installations? Same mechanic execution can be ordered with PROFIBUS or PROFINET. Even your PLC program is the same.

We love to fit encoTRive positioning drives to your application. Gearboxes ranges from single stage planetary gear up to robust wormgears. We choose the gear type that suits your application best.




Das neue ABC der Maschinensteuerung

notion.ABC

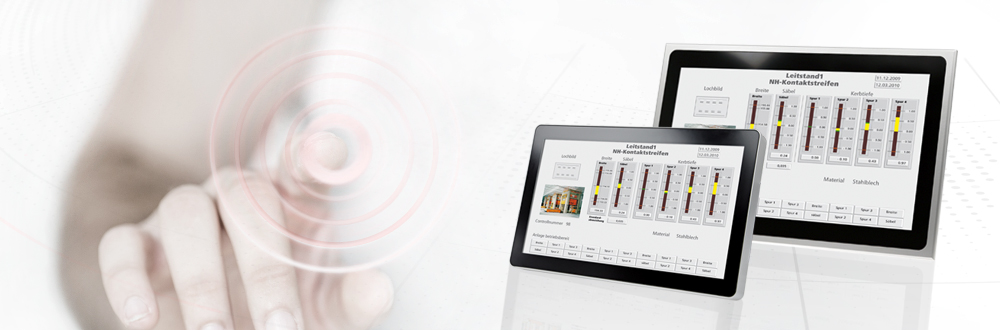

Independent operating platform "notion.ABC"

learn more

TR-Automation

Automation / Retrofit

Consulting and implementation of new systems and retrofits in eccentric presses, hydraulic presses, transfer machines and assemblies.
learn more

Das neue ABC der Maschinensteuerung

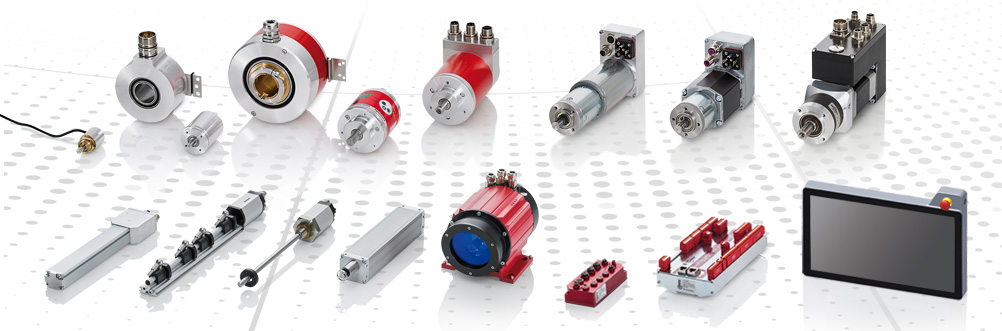

Full product range

Our product specialists look forward to meet you in Hannover. We provide consulting for the whole product and service range of TR. We are glad to answer your questions!
