HANNOVER MESSE 23 - 27. April (2018 Hall/Booth: 9/9G18)

We look forward to present our latest developments in Hanover. And the most inconspicuous development is probably our biggest highlight: Our industry standard shaft encoders in a 58 mm housing are also available as functionally safe encoders up to SIL 3 / PLe. Installation space is no longer an argument against installing safe and true multi-turn position detection devices in your system or machine. A lot has happened in other product areas too. Come and visit us when the world meets in Hanover from April 23 to 27.



Highlights

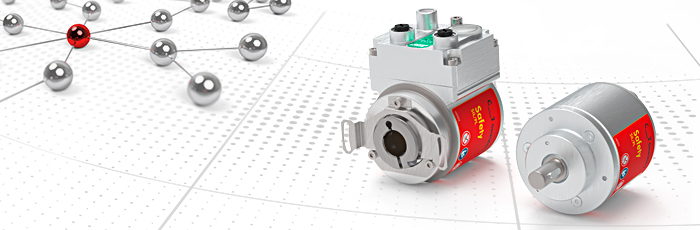

Safe absolute shaft encoder in 58 mm industry standard size

TR-Electronic introduces the SIL shaft encoder CD_582+FS.

The trade fair novelty of TR-Electronic is rather inconspicuous when viewed from the outside: An absolute shaft encoder in 58 mm standard size. But this innovation has it all! This compact installation space holds a true absolute multi-turn double shaft encoder system with integrated safety evaluation that outputs error-protected data (“Safe Position” – SLP). The shaft encoder version determines whether it is for the highest safety level SIL3 or PLe or a variant adapted to the requirements of SIL2/PLd applications. This ultra-compact SIL shaft encoder fits into a wide variety of mounting situations.

Learn more

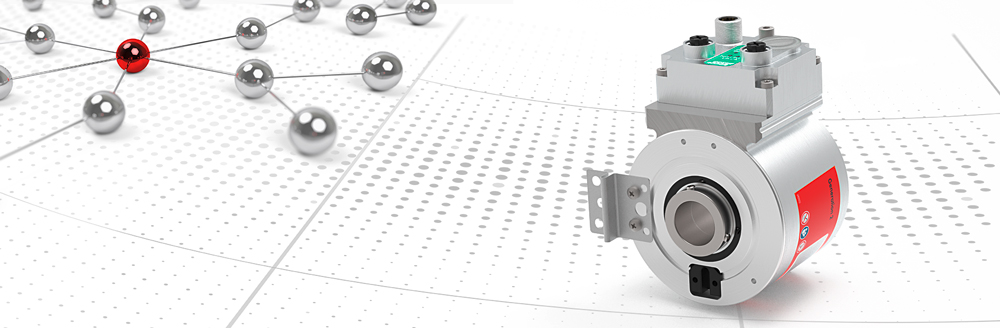

Large hollow shaft encoders with Industrial Ethernet

The C_H802 series from TR-Electronic.

Directly assembling shaft encoders with a continuous hollow shaft is a very effective method of reliably detecting the absolute angular position of drive shafts across many revolutions. No special shaft ends on motors, no clutches. High torque drive trains require shafts with a correspondingly large diameter. The absolute multi-turn shaft encoders C_H802 provide precise position information for shafts up to a diameter of 27 mm.

learn more


Linear absolute position measuring systems for standard industrial applications

LM_S34 is an absolute linear sensor that is perfectly adapted to standard industrial applications with a resolution of 0.01 mm and a measuring length of 3 m. The first member of the 34 family is the sensor rod for direct installation in hydraulic cylinders with the usual direct interfaces SSI, analogue, and CAN. The head’s width across flats is 34 mm; the sensor head therefore fits into compact hydraulic cylinders. The measuring systems with magnetostriction work completely contactless and therefore wear-free.

Learn more


System-neutral operating concept for machines and industrial plants

TRsystems introduces the notion.Client user interface system.

The notion.remote-client operating and display systems combine proven software technologies with the robust, industry-grade notion. computer platform. TRsystems’ notion.remote-client is a universal platform for modern machine and system operation. Whether original equipment or retrofit – notion.remote-client connects to almost any PC-based positioning system and is the user interface needed – robust and thus permanently useable in industrial environments.

Learn more



Das neue ABC der Maschinensteuerung

notion.ABC

Independent operating platform "notion.ABC"

learn more

TR-Automation

Automation / Retrofit

Consulting and implementation of new systems and retrofits in eccentric presses, hydraulic presses, transfer machines and assemblies.
learn more

Das neue ABC der Maschinensteuerung

Full product range

Our product specialists look forward to meet you in Hannover. We provide consulting for the whole product and service range of TR. We are glad to answer your questions!
